◆ Specifications
● Class EA
● Utility Valves
● CW617N Brass body
● Operating position: any
● Connection : Threading according to ISO 228/1
◆ Operating parameters
● Operating temperature: 65°C
● Maximum temperature: 1 h 90°C
● Maximum pressure: 1 MPa (10 bar)
● Applications : For all compatible fluids
◆ Advantages
● warranty: 5 years
● thick walls and solid workmanship - increased durability and strength
● quality control carried out strictly according to applicable European standards
● 100% of the valves produced are tested for leakage
● Each central heating and DHW system includes devices used to control or secure of the entire system
● excessive temperature: thermostatic mixers, draft regulator
● excessive pressure: safety valves, pressure regulators, automatic filling valves
● undesired backflow: anti-siphoning check valves

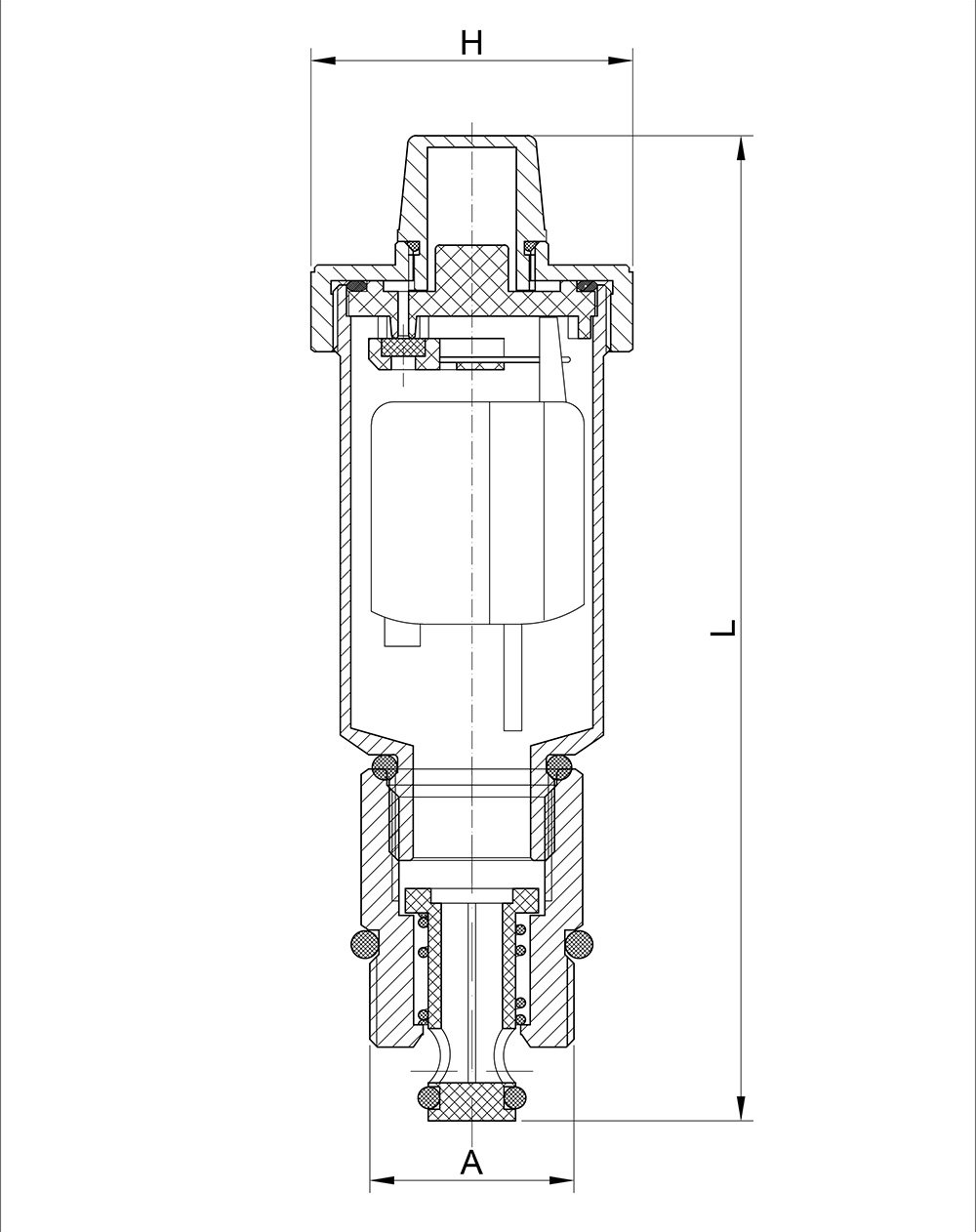

Size | DN | A | H [mm] | L [mm] | Individ. Pack | Collect. Pack |
1/2" | 15 | G1/2 | 33 | 101 | 10 | 100 |
