angle valves

LSK-VL506 Brass angle valve with KOMBI-68
LSK-VL506 Brass angle valve with KOMBI-69
LSK-VL506 Brass angle valve with KOMBI-70

LSK-VL506 Brass angle valve with KOMBI

Product Description

◆  Specifications

●  bodies made of high-quality CW617N brass

●  seals made of NBR or PTFE

●  stainless steel filter cartridges

●  Utility Valves, chrome

●  Connection :BSP/NPT


Product Details

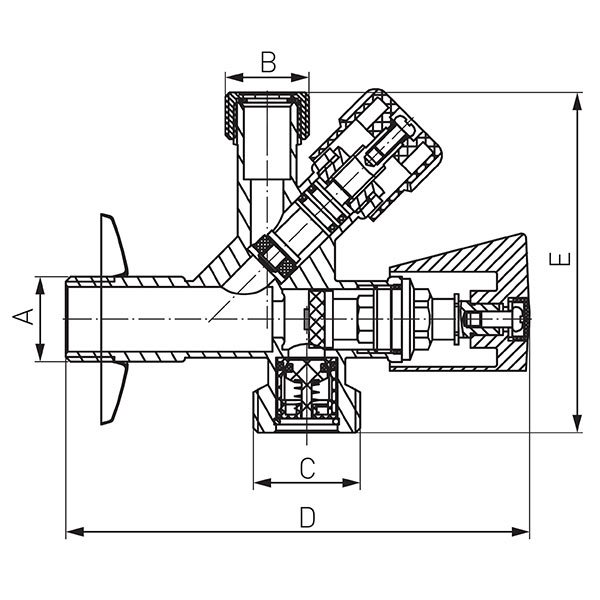

LSK-VL501 产品结构图-1


◆  Operating parameters and scope of application

●  nominal pressure: 1,0 MPa (10 bar)

●  max. working temperature: 110°C

●  min. working temperature: -10°C

●  working media: hot and cold water (water systems)


◆  Advantages

●  warranty: 5 years

●  solid workmanship

●  thick walls and solid workmanship - increased durability and strength

●  connection threads with a large number of thread turns provides a secure and tight connection

●  chrome plated and polished body resistant to blocking

●  stable and safe seating of the stem due to assembly from the inside of the valve

●  quality control carried out strictly according to applicable European standards

●  100% of produced valves are subjected to tightness test

●  valves are sandblasted and then polish on the outer surfaces

●  internal surface suitable for potable water


SizeABD [mm]E [mm]Individ. PackCollect. Pack
3/8”x1/2”x3/4”G1/2G3/8G3/411484120
1/2"x1/2"x3/4"G1/2G1/2G3/411484120
