LSK-VL125 BRASS BALL VALVE (Válvula de esfera roscable)

Product Description

◆  Specifications

●  female-female

●  complete flow

●  connnection threadable

●  handle: metal lever

●  body material: CW617N brass

●  ball material: brass, chrome plated

●  ball sealing: PTFE

●  stem sealing: PTFE

Product Details

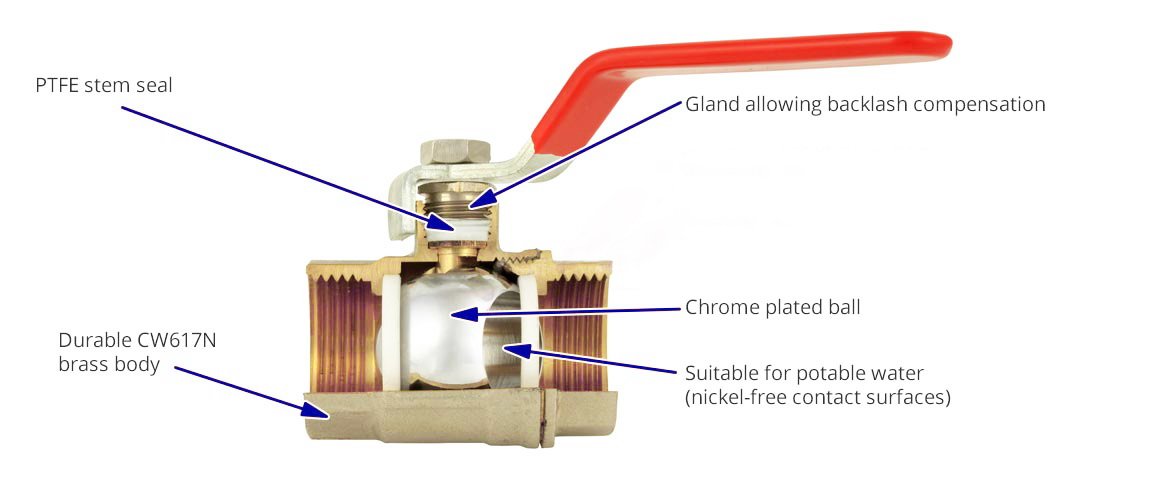

LSK-VL101 产品结构图


◆  Operating parameters and scope of application

●  nominal pressure: 25 bar (PN25)

●  max. working temperature: 110°C

●  min. working temperature: -10°C

●  working media: water (water supply systems and central heating)


◆  Advantages

●  warranty: 5 years

●  full bore according to standard, valve bore without any constriction affecting the flow

●  the gland on the stem allows compensation of possible clearance by means of a simple wrench

●  solid metal handle

●  thick walls and solid workmanship - increased durability and strength

●  chrome plated and polished ball resistant to blocking

●  connection threads with a large number of thread turns provides a secure and tight connection

●  stable and safe seating of the stem due to assembly from the inside of the valve

●  quality control carried out strictly according to applicable European standards

●  100% of the valves produced are tested for leakage

●  brass ball valve is a product designed to open and close a fluid in a pipping system

●  It offers a straight and complete flow avoiding pressure drops as well as trubulence

●  it has a bubble-proof seal, providing an essential seal at a high frequency of operation

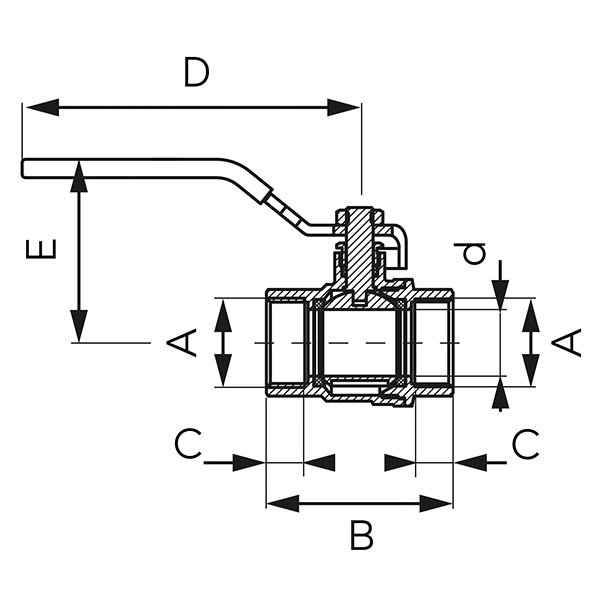

LSK-VL101 产品图纸


SizeDNAd [mm]B [mm]C [mm]D [mm]E [mm]Kvs [m3/h]Individ. PackCollect. Pack
1/2"15G1/21550.510.59648.57.8612120
3/4"20G3/4205611101.55515.61080
1"25G12566.513116.565.524.13848
1 1/4"32G1 1/4327914116.570.544.97832
1 1/2"40G1 1/2409014.5126.57466.94424
2"50G25010416151.590.5105.65212
2 1/2"65G2 1/26514124242123.5
14
3"  80G3  8016024242135.5
14
4"100G49819228267149
12
