VENT VALVES

LSK-VL129 Drain water ball valve with gaskets		-154
LSK-VL129 Drain water ball valve with gaskets		-155
LSK-VL129 Drain water ball valve with gaskets		-156
LSK-VL129 Drain water ball valve with gaskets		-157

LSK-VL129 Drain water ball valve with gaskets

Product Description

◆  Specifications

●  female-female

●  full bore

●  with gland and packing nut

●  handle: metal lever

●  body material: CW617N brass

●  ball finish: chrome plated, polished

●  ball sealing: PTFE

●  stem sealing: PTFE

Product Details

◆  Operating parameters and scope of application

●  nominal pressure: 10 bar (PN20)

●  max. working temperature: 110°C

●  min. working temperature: -10°C

●  working media: water (water supply systems and central heating)


◆  Advantages

●  warranty: 5 years

●  full bore according to standard, valve bore without any constriction affecting the flow

●  the gland on the stem allows compensation of possible clearance by means of a simple wrench

●  solid metal handle

●  thick walls and solid workmanship - increased durability and strength

●  chrome plated and polished ball resistant to blocking

●  connection threads with a large number of thread turns provides a secure and tight connection

●  stable and safe seating of the stem due to assembly from the inside of the valve

●  quality control carried out strictly according to applicable European standards

●  100% of the valves produced are tested for leakage

●  valves are sandblasted and then nickel plated on the outer surfaces

●  NICKEL FREE - The surface of the valve in contact with water is not nickle-plated

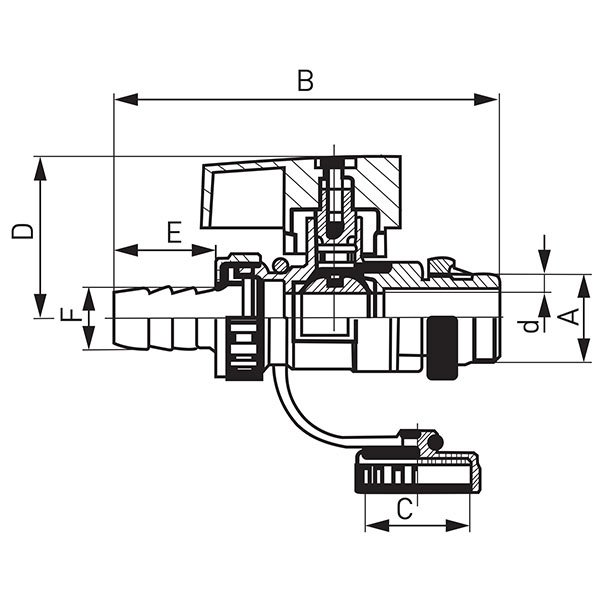

SizeDNd [mm]AB [mm]CD [mm]E [mm]F [mm]Individ. PackCollect. Pack
3/8"1015G3/880G1/236.518.913.110100
1/2"1520G1/289G3/43823.514.610100
3/4"2025G3/492G140.523.51910100
