◆ Specifications
● female-female
● with gland
● handle: butterfly
● body and ball: high quality brass CW617N
● ball finish: chrome, polished
● ball sealing: PTFE gaskets
● pin sealing: PTFE and NBR70 o-ring
◆ Operating parameters and scope of application
● pressure class: MOP 5 (5 bar)
● temperature class: T2 (-20°C ÷ 60°C)
● working media: gas (gas supply systems and central heating)
◆ Advantages
● warranty: 5 years
● high-quality materials
● standard thread connection
● conform to international standards
● solid metal handle
● thick walls and solid workmanship - increased durability and strength
● chrome plated and polished ball resistant to blocking
● stable and safe seating of the stem due to assembly from the inside of the valve
● 100% of the valves produced are tested for leakage
● quality control carried out strictly according to applicable European standards

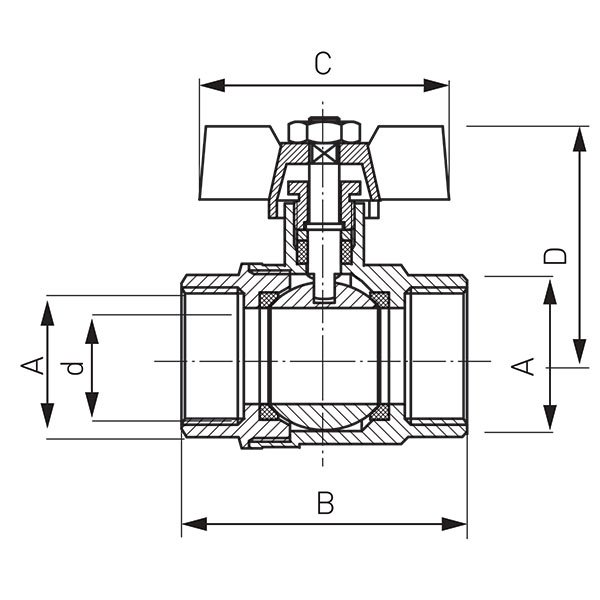

Size | DN | A | d [mm] | B [mm] | C [mm] | D [mm] | Kvs [m3/h] | Individ. Pack | Collect. Pack |
1/2" | 15 | G1/2 | 15 | 50 | 53 | 40 | 9 | 15 | 180 |
3/4" | 20 | G3/4 | 19 | 55.6 | 53 | 43 | 15 | 12 | 120 |
1" | 25 | G1 | 25 | 66.6 | 65 | 47 | 25 | 10 | 90 |
1 1/4" | 32 | G1 1/4 | 31 | 76 | 75 | 62 | 6 | 36 |
